Sigen Hybrid Inverter

Add battery anytime.

Packed with safety features, Sigen Hybrid Inverter allows you to add Sigen Battery easily down the track when you’re ready to expand your solar system to include energy storage for optimized home energy experience.

Battery Ready

Upgrade anytime.

Begin with a PV inverter and seamlessly transition to energy storage systems whenever you are ready, unlocking the full potential of solar energy. The process is effortlessly intuitive - simply stack battery packs into your existing inverter and obtain licensing from Sigenergy.
    alt

    Future proof

    alt

    Plug and Play

    alt

    Lower Investment

alt

Elevated Power Yield

More powerful than ever.

Boasting up to 4 MPP trackers for optimal energy harvesting and a robust Max 16A MPPT current, Sigen Hybrid Inverter ensures complete coverage of all PV panels in a roof scenario. With a DC/AC ratio of up to 2, it achieves superior efficiency, maximizing power yield for a more sustainable energy solution.
    Up to 4

    MPP Tracker

    Up to 16A

    MPPT current

    Up to 2

    DC/AC ratio

Superior Safety & Reliability

Peace of mind in use.

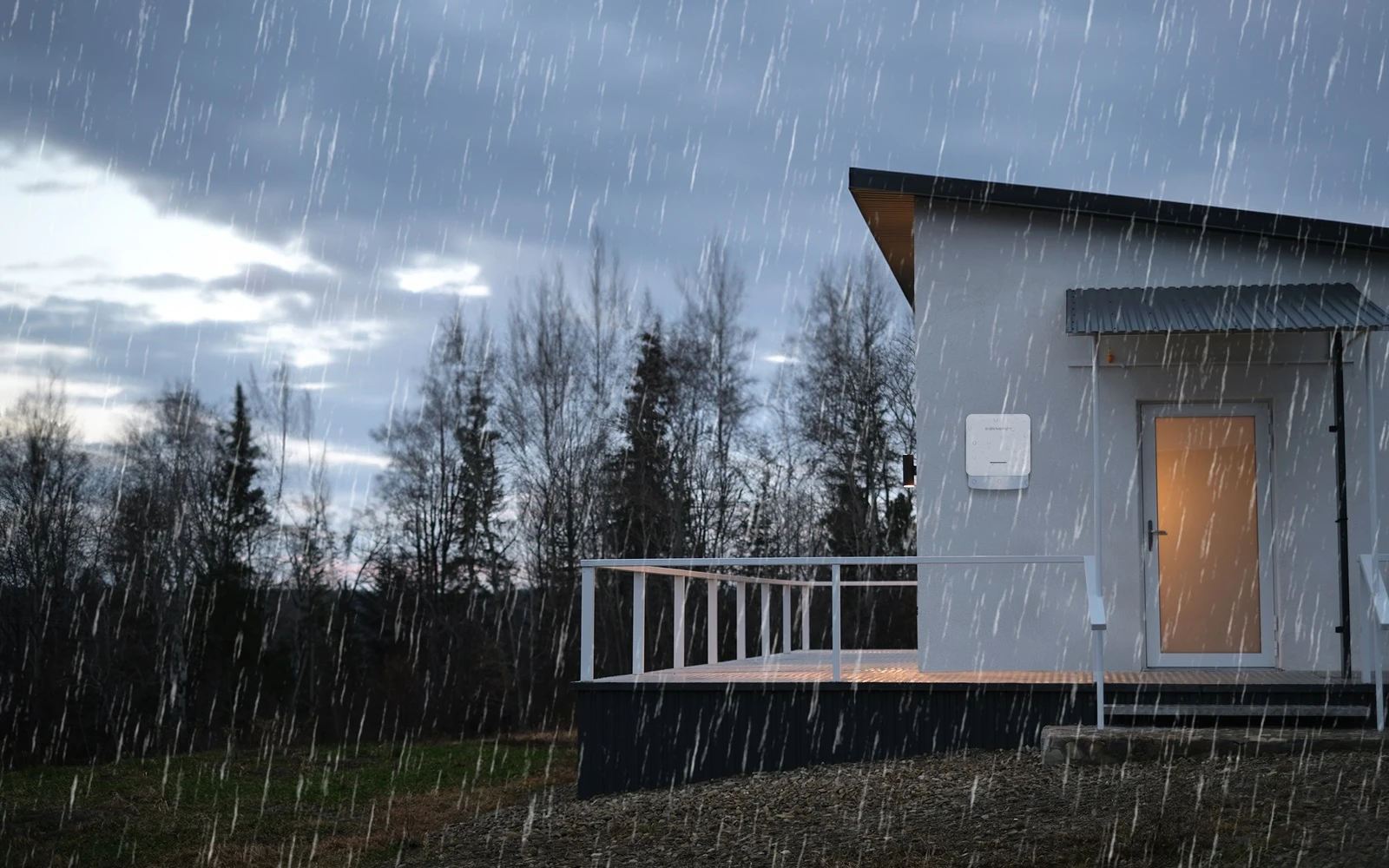

Sigen Hybrid Inverter sets the safety standard in the industry, providing unparalleled protection with features such as DC ground-fault and long-distance AFCI. Its IP66 certification guarantees absolute resistance to dust, high humidity, and heavy rainfall.

With EMC performance exceeding industry standards (<34db), it ensures ultra safety, immunity to interference, and stable operation for users.

    alt

    IP66 Protection Rating

    alt

    DC Ground-fault Protection

    alt

    Long Distance Detection AFCI

alt
alt

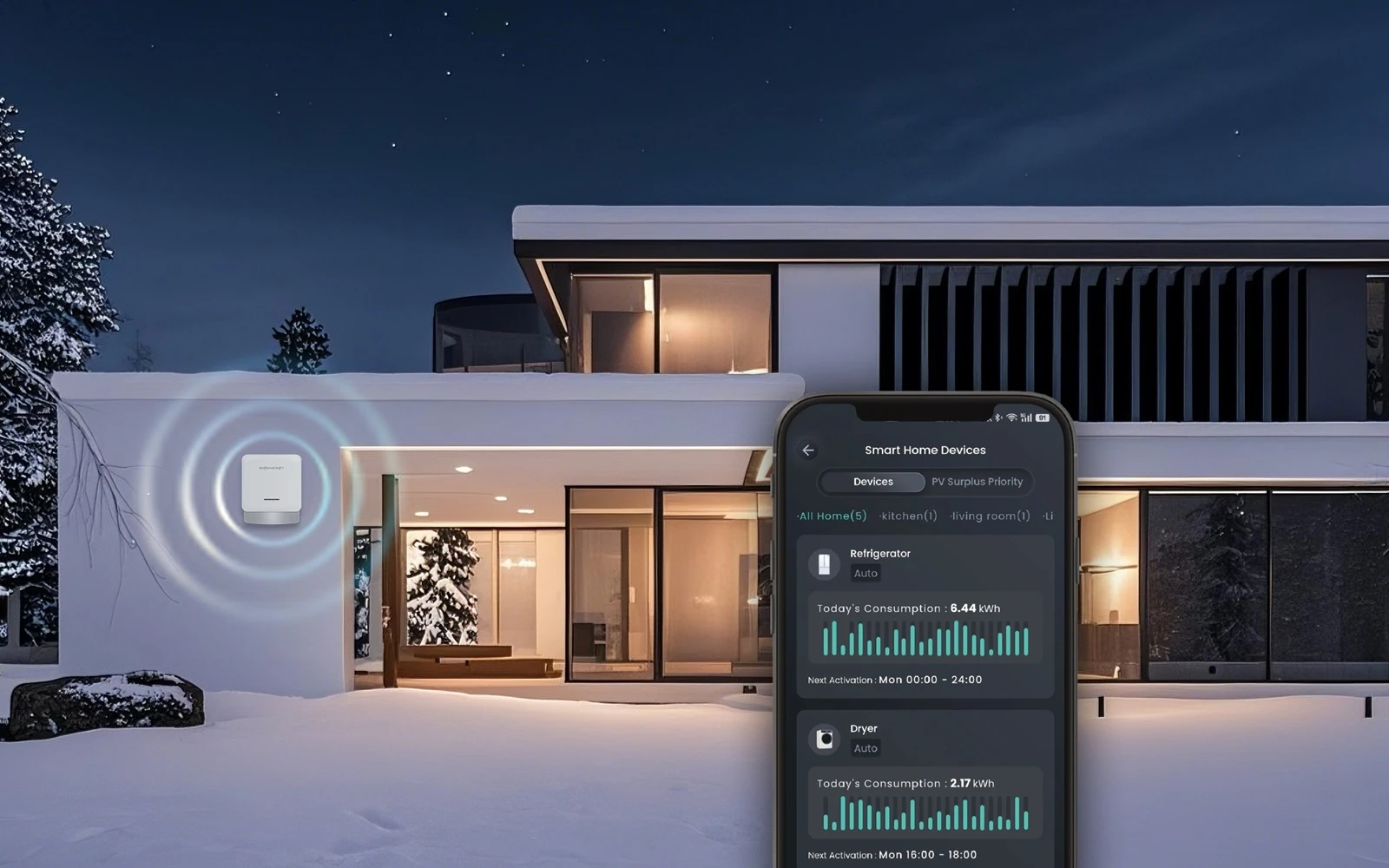

Smart Control

Intelligence unfolds at your fingertips.

Thanks to the mySigen App, your energy experience is about to reach new heights. Commissioning now takes just 5 minutes, and any system issues can be instantly identified with a simple one-click diagnosis. Powered by GPT-4, this app functions as your after-sales engineer, energy analyst, and device management assistant.
    Real-time

    Status Monitoring

    One-click

    System Diagnosis

    Versatile

    Service Assistant

sigenergy hybrid inverter

Sigen Hybrid Inverter

Single Phase / Three Phase

Battery ready, future proof

DC ground-fault protection

DC/AC ratio up to 2

IP66 protection rating


DC Input

No. of MPP. trackers 2
No. of PV strings per MPPT 1
Max. input current per MPPT 16 A


AC Output (on-grid)

Nominal output power 3000 ~ 6000 W
Nominal output voltage 220 / 230 / 240 V


Efficiency

Max. efficiency 98.0%


General

Cooling Natural convection
Ingress protection rating IP66
Noise emission < 30 dB
See Datasheet

Battery ready, future proof

DC ground-fault protection

Up to 4 MPP trackers

IP66 protection rating


DC Input

No. of MPP. trackers 2 / 3/ 4
No. of PV strings per MPPT 1
Max. input current per MPPT 16 A


AC Output (on-grid)

Nominal output power 5000 ~ 25000 W
Nominal output voltage 380 / 400 V


Efficiency

Max. efficiency 98.5%


General

Cooling Natural convection
Ingress protection rating IP66


See Datasheet
