Sigen Energy Gateway

The Sigen Energy Gateway, when used with SigenStor, provides intelligent energy management and monitoring. It automatically detects outages and offers a seamless transition to backup power. Ensuring loads are supplied in the event of a power failure. You can track energy usage and control energy flow all with mySigen App.

Light & Strong

Design to last.

Compared to galvanized steel that is widely used in the industry, Sigen Energy Gateway has a full Aluminum structure, reducing total weight by 8 kg and increasing product life by a decade. Anti-rust, corrosion-resistant, and super durable. Discover our battery backup box that excels in both aesthetics and practicality.

Lightweight

Practical

Durable

More Connections

Always ready.

Sigen Energy Gateway has six ports reserved for various connections to meet every need. It can connect up to three SigenStor energy storage system, as well as high-power devices such as inverter, generator, heat pump, or EV AC charger etc.

See Datasheet

Full Backup

Peace of mind.

Whether for whole home or partial home backup, Sigen Energy Gateway gives you ultimate peace of mind. When outages occur, It is capable of switching to backup power seamlessly. That means you can enjoy uninterrupted electricity supply 24/7 from a mix of power sources such as solar, grid, or generator.

Hybrid

Power Sources

0 ms

Load Side Disruption

Safe & Smart

Responsive while reliable.

Industry leading 350 ms reverse power flow protection.

System protection by data driven risk prevention mechanism.

Easily monitor and control energy flow via mySigen App.

0 ms

Load Side Disruption.

Sigenergy's patented 0ms load side disruption, your ultimate defense for uninterrupted power at home.

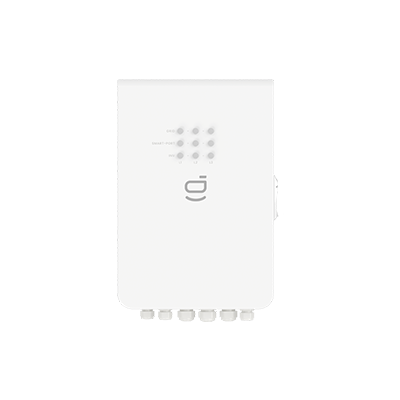

Sigen Energy Gateway

SP AU / TP AU

0 ms switch to backup mode, worry-free energy usage

Ready for generator, heat pump or other controllable loads

Support both whole home backup & partial home backup

350 ms reverse power flow protection of grid & generator

Uninterrupted power supply through PV+ESS/grid/generator

Grid Connection


Type		Single phase
Nominal AC input/output current		54.6A
AC Output to Backup Port
Nominal AC output current		54.6A
Inverter Connection
Nominal AC input current		54.6A(INV1), 32A(INV2)*
Max. AC nominal power per inverter connection		12A(INV1), 7A(INV2)*
Smart Port Connection
Nominal AC input/output power		12kW
Nominal input/output current		54.6A

*For Sigenergy single phase inverter products, 8.0-12.0 kW inverters should be connected to the INV1 port, 3.0-6.0 kW inverters should be connected to the INV2 port. The sum of the parallel power of the Sigenergy inverters cannot exceed 12 kW.

See Datasheet

0 ms switch to backup mode, worry-free energy usage

Ready for generator, heat pump or other controllable loads

Support both whole home backup & partial home backup

350 ms reverse power flow protection of grid & generator

Uninterrupted power supply through PV+ESS/grid/generator

Grid Connection


Type		Three phase
Nominal AC input/output current		91.2A
AC Output to Backup Port
Nominal AC output current		91.2A
Inverter Connection
Nominal AC input current		45.6A(INV1), 45.6A(INV2), 30A(INV3)*
Max. AC nominal power per inverter connection		30A(INV1), 30A(INV2), 15A(INV3)*
Smart Port Connection
Nominal AC input/output power		60kW
Nominal input/output current		91.2A

*For Sigenergy three phase inverter products, the INV1 and INV2 ports support 17.0-30.0 kW inverter, the INV3 port supports 6.0-15.0 kW inverter. The sum of the parallel power of the Sigenergy inverters cannot exceed 60 kW.

See Datasheet
